Device spec

Stereo-cap

Our stock head-worn spatial capture system for hands, objects, and close-range robotics training data.

Discuss hardware partnerships

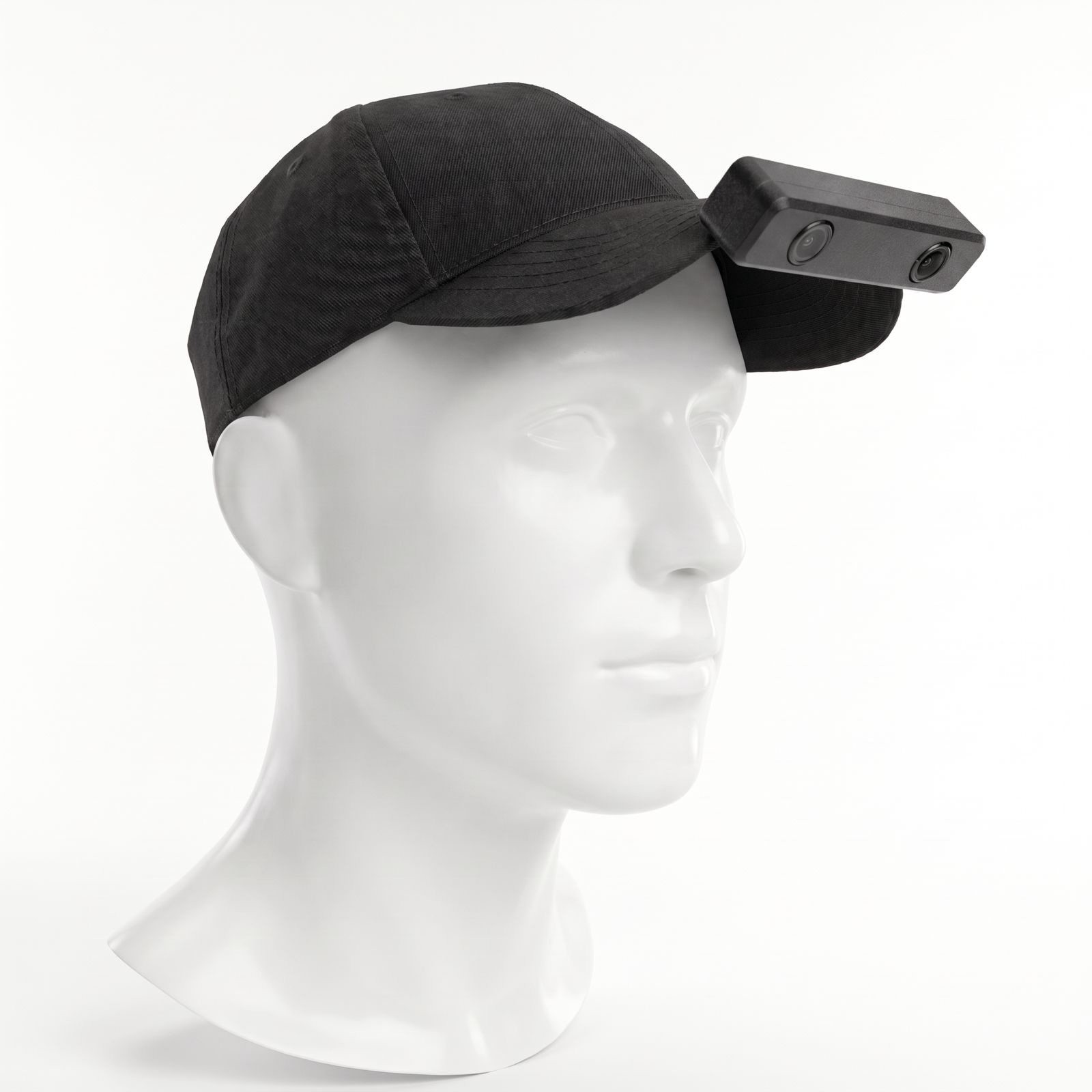

Three-quarter product view of the black OpenRobot Stereo-cap
Stock system Configured cap, stereo camera, receiver, and setup documents. Bring your own compatible removable SD storage and USB power bank.

Mechanical view

Inside Stereo-cap.

Scroll through the optical assembly. Drag to inspect on desktop.

Stereo-cap Optical assembly

Assembled · 0%

  1. 01 Body housing
  2. 02 Front cover
  3. 03 Stereo cameras
Loading 3D assembly 0%

Continue scrolling to disassemble

When Stereo-cap is the right fit

Best forRobotics teams, physical-AI labs, and data programs capturing hands, objects, close-range manipulation, and spatial task work
Choose stereo whenThe workflow needs synchronized left/right video, calibrated geometry, and high-rate motion data
Capture modelSessions record locally to the receiver with removable storage; phone control works without a laptop in the capture loop
ScopeCapture hardware only; no built-in hand tracking, 3D pose estimation, cloud processing, or tactile sensing

Specifications

Imaging

Camera topologyStereo camera
CamerasTwo color global-shutter cameras, 1/2.6-inch, 1928 × 1208 active, 3 µm pixels
OpticsM12 ultra-wide-angle lenses
Output per eye1920 × 1200 @ 30 fps
Field of viewApproximately 112° horizontal / 80° vertical (±3°) / 119° diagonal
BaselineApproximately 60 mm

Video output

LayoutSide-by-side stereo, left and right in one frame
Stereo output3840 × 1200 side-by-side @ 30 fps
Frame cadence33.333 ms/frame at 30 fps
TimestampsHardware sync timestamps available in device microseconds

IMU

Type6-axis MEMS IMU
Output rateApproximately 505 Hz
Gyroscope range±1000 dps
Accelerometer range±4 g

Sync & calibration

Left/right exposureHardware same-frame exposure
Measured left/right offset0 µs across 23,023 frames
Video-to-IMU alignmentApproximately 0.4 ms measured alignment precision
Calibration modelPinhole + radial-tangential Brown-Conrady
Stereo calibration RMSApproximately 0.36 px

Interface & power

InterfaceUSB 2.0 High-Speed UVC bulk
PowerBring your own compatible USB power bank
ReceiverIncluded receiver with removable SD-card slot
StorageBring your own compatible removable SD card
RecordingLocal to the receiver; no laptop or separate recorder required
Phone controlBluetooth and 2.4 GHz Wi-Fi for control, review, and supported offload
